Description:

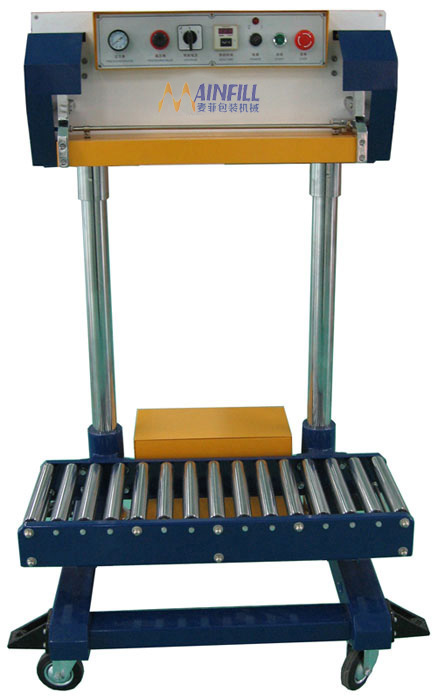

QF-800L The machine is widely used in chemical industry,foodstuff,feedstuff industries to seal various plastic film bags and compound bag with max.sealing length of 600mm and max.carrying load of 50kg.It adopts compressed air as motive power with variable sealing pressure and reliable sealing quality.The sealing operation can be controlled by manual or through using pedal switch,featuring ease of operation.For relatively thick bag,you can choose model QF-800 L/S with double heating function.According to special order,the sealing length can be increased to 1000mm.The machine can also be integrated into a conveyor or a production line.
The machine is widely used for blister packaging of hardware,toys,small articles of daily use,electronic components,etc.The packed products are visible,eye drawing,dampproof,dustproof and secure.
Voltage:AC 220/50 110/60
Total power:1.6KW
Air compressor:6 kg/cm2 0.1m3/min
Sealing length:800mm
Sealing width:8-10mm
Distance sealing center to floor：1140mm
Film thickness(Single layer)：≤0.18mm
Max.package sealing load：450-750mm
Max.sealing load:50kg
Adjustable angle of pressing head:20°
Overall dimension:720×560×1340mm
Net weight:84kg
