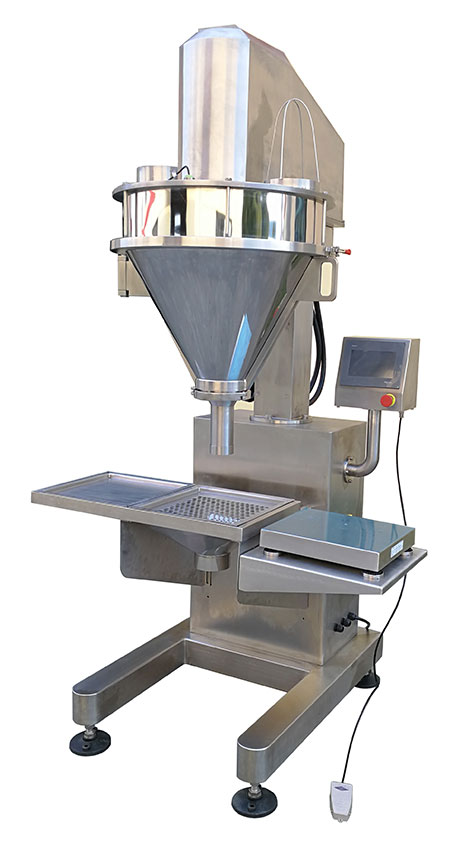

This type can do dosing and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on.
Main features
Stainless steel structure；Quick disconnecting or split hopper could be washed easily without tools.
Servo motor drive screw.
PLC & touch screen make it be easy of operation.
Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
Save the parameter of different filling weight for different materials. To save 10 sets at most
Replacing the auger parts, it is suitable for material from super thin powder to granule.
Main Technical Data
|
Model |
MFS-R25 |
MFS-R50 |
MFS-R75 |
|
Hopper |
Quick disconnecting hopper 25L |
Quick disconnecting hopper 50L |
Quick disconnecting hopper 75L |
|
Packing Weight |
1 - 500g |
10 - 2000g |
10 - 5000g |
|
Packing accuracy |
≤ 100g, ≤±2%; 100 – 500g, ≤±1% |
≤ 100g,≤±2%; 100 – 500g,≤±1%;≥500g,≤±0.5% |
≤ 100g,≤±2%; 100 – 500g,≤±1%;≥500g,≤±0.5% |
|
Filling speed |
40 – 120 times per min |
30 – 80 times per min |
20 – 50 times per min |
|
Power supply |
3P AC208-415V 50/60Hz |
3P AC208-415V 50/60Hz |
3P AC208-415V 50/60Hz |
|
Total Power |
0.93 Kw |
1.4Kw |
2.25Kw |
|
Total Weight |
130kg |
260kg |
350kg |
|
Overall Dimensions |
807×700×1850mm |
1140×970×2030mm |
1205×1010×2174mm |
