Descriptive abstract

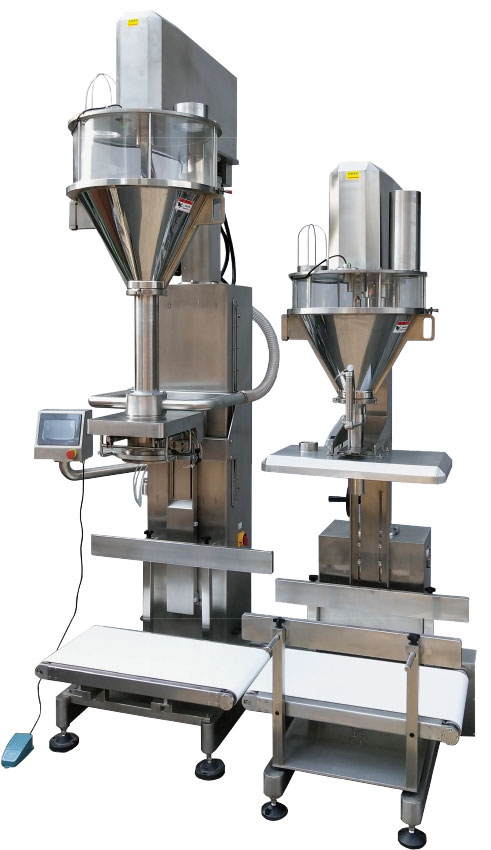

The machine is mainly designed for the packing requirements of high precision and high speed of superfine powder which is easy to dust.Main & assist double head filling system. It is specially suitable for filling additives, carbon powder, dry powder of fire extinguisher, and other fine powder which needs high packing accuracy.

Main features

Main & assist double head filling system, according to the pre-set weight for fast filling and assist filling, fast filling and assist filling in their own independent station to ensure high packing accuracy and high packing speed.

Servo motor of the main filler does up-down work driving with tray and clamper, the up-down rate can be set randomly, no dust spouts out when filling.

The conveyor belt of assist filler is installed on the load cell. According to the actual weighing of the main filling weight and the target weight,supplement the missing weight.

With servo motor and servo drive controlled auger, perform stably, and with high accuracy.

PLC control, touch screen display, easy to operate.

Made of stainless steel, combined hopper or split hopper, easily to be cleaned.

With handwheel to adjust the height , easy to fill many kinds of weight.

With fixed screw installation, the material quality won’t be effected.

Process: put bag/can(container) on the machine → container raise → fast filling，container declines → fast filling is completed, the conveyor belt starts → the conveyor belt stops, weighing → assist filling  → weight reaches the goal number → take the container away manually

Note: the pneumatic bag-clamp equipment and can-hold set is optional ,they are suitable for can or bag filling separately.

Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.

Main Technical Data
