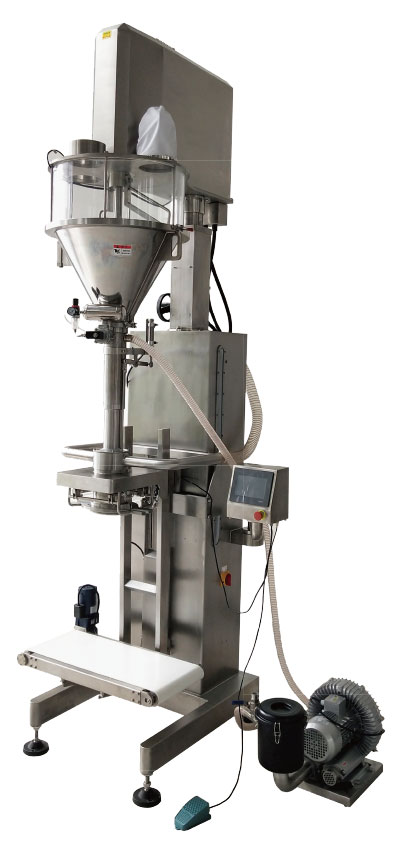

Descriptive abstract

This model is designed mainly for the fine powder which easily to spout dust and high-accuracy packing requirement. Based on the feedback sign given by below weight sensor, this machine do measuring, two-filling , and up-down  work ,etc. It is specially suitable for filling additives, carbon powder, dry powder of fire extinguisher, and other fine powder which needs high packing accuracy.

Main features

Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight.Featured with high speed and accuracy weighing system to guarantee the high packaging accuracy.

Servo motor does up-down work driving with tray together, the up-down rate can be set randomly, no dust spouts out when filling.

The filling screw tube with stainless steel sintering screen filter interlayer, combined with vortex air pump, can realize the degassing of powder, reduce the air content in powder and reduce the volume of powder.

The back blowing device of the compressed air case back blows the filter screen to prevent the filter screen from being blocked by materials for a long time, which makes the degassing effect of the machine worse.

There is a filter device in front of the air inlet pipe of degassing vortex air pump to prevent materials from directly entering the air pump and damaging the air pump.

With servo motor and servo drive controlled auger, perform stably, and with high accuracy.The power of the servo motor is increased, and a planetary reducer is added to prevent the servo motor from being overloaded due to the increased resistance of the material degassing screw rotation.

PLC control, touch screen display, easy to operate.

Made of stainless steel, combined hopper or split hopper, easily to be cleaned.

With handwheel to adjust the height , easy to fill many kinds of weight.

With fixed screw installation, the material quality won’t be effected.

Process: put bag/can(container) on the machine → container raise → fast filling，container declines → weight reaches the pre-set number → slow filling  → weight reaches the goal number → take the container away manually

Note: the pneumatic bag-clamp equipment and can-hold set is optional ,they are suitable for can or bag filling separately.

Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.
